We are Czech company Design Weld ltd.
Our company is a part of the Czech market from 2001. During that time we have become leading supplier of technologies for important Czech but also foreign companies (France, Germany, Russia, Mexico, Turkey, Morocco, Hungary, Romania and Slovak republic).
Among our products we count resistance welding presses 50 Hz and 1000 Hz, including welding presses for resistance welding of high resistance materials (USIBOR,…), dedicated welding machines, high capacity welding machines with turntables, two-position welding machines, furthermore automatic nut, screw and plate feeders.
We are specialists in creating welding tools for component resistance welding, Welding tools for resistance welding (manual, robotic) and clamping fixtures for laser cutting. Moreover we can offer ceramic pins and bushings for resistance welding, welding pins with ceramic coating, distance shims, control fixtures, control stations with 100% control of throughout of the thread, spare parts for resistance welding and welding tools for arc welding (manual as well as robotic).
What do we produce?
Products
Among our products we count resistance welding presses 50 Hz and 1000 Hz, including welding presses for resistance welding of high resistance materials (USIBOR,…), dedicated welding machines, high capacity welding machines with turntables, two-position welding machines, furthermore automatic nut, screw and plate feeders.
We are specialists in creating welding tools for component resistance welding, Welding tools for resistance welding (manual, robotic) and clamping fixtures for laser cutting. Moreover we can offer ceramic pins and bushings for resistance welding, welding pins with ceramic coating, distance shims, control fixtures, control stations with 100% control of throughout of the thread, spare parts for resistance welding and welding tools for arc welding (manual as well as robotic).
validation, verification, repair, supervision, testing, welding...
Services
Among our products we count consulting services in the area of resistance welding, validation and verification of welding process, we realize high-quality refurbishments of resistance welding machines, we also offer welding supervision, technological try-outs in the field of resistance welding, reference welding and we are able to produce ceramic pin up to 24 hours.
Construction, technical and production capacities and possibilities
About us
Construction and technical possibilities
- 10 licences CAD software SOLID WORKS 2018
- 1 licence CAM software HSMWorks Premium + SOLID WORKS 2018
- 3 licences software EPLAN Electric P8 Select v2.7
- 4 licences TIA portal professional V15 / TIA portal basic V13 / STEP7 V5.5 (programming of industrial automatic machines and touch panels SIEMENS)
- 1 licence CxOne (programming of industrial automatic machines and touch panels OMRON)
- programming of touch panels WEINTEK
- measuring arm FARO 3,7 m and software PolyWorks
- set up of welding technology for Bosch Rexroth, Harms a Wende, SERRA, ARO, VTS-electro, …
- control / programming industrial robots KUKA
- control / programming industrial robots ABB
Construction capacities
- construction works - machining (3D a 2D) 1.600 hours per month
- construction works – electro-technical 480 hours per month
- software works / programming 480 hours per month
- welding technology / consulting 160 hours per month
Production capacities
- 5-side milling / working of large parts 2.940 x 1.600 x 900
- 4 axe milling of parts 1.200 x 500 x 600
- 3 axe milling of parts 1.270 x 610 x 720
- 2D CNC milling 1500 x 650 x 600
- CNC lathe work 510 x 1100
- CNC lathe work 350 x 850
- tool milling and lathe works YES
- convenience milling YES
- convenience lathe work YES
- grinding – flat, round YES
- horizontal boring / milling YES
- deep boring into 2.000 depth / diameter 50 mm
- welding of steel, stainless steel and aluminium constructions / frames by MIG / MAG / TIG
- annealing, machining, surface treating (RAL, zinc, blackening) YES
- locksmithery / assembly mechanical works YES
- production of electric control cabinets YES
- electric connection of machines YES
- pneumatic connections of machines YES
- set up and measurement of welding tools, including measurement protocols creation YES
Production capacities
- 5 CNC side milling / machining of large parts 320 hours per month
- 4 axe a 3-axe CNC milling of parts 640 hours per month
- 2D CNC milling 480 hours per month
- CNC lathe work 480 hours per month
- convenience milling 1.280 hours per month
- convenience lathe work 480 hours per month
- horizontal boring / milling 320 hours per month
- welding of steel frames 320 hours per month
- locksmithery / assembly mechanical works 480 hours per month
- production of electric control cabinets 320 hours per month
- electric and pneumatic connection of machines 480 hours per month
- set up and measurement of welding tools 160 hours per month

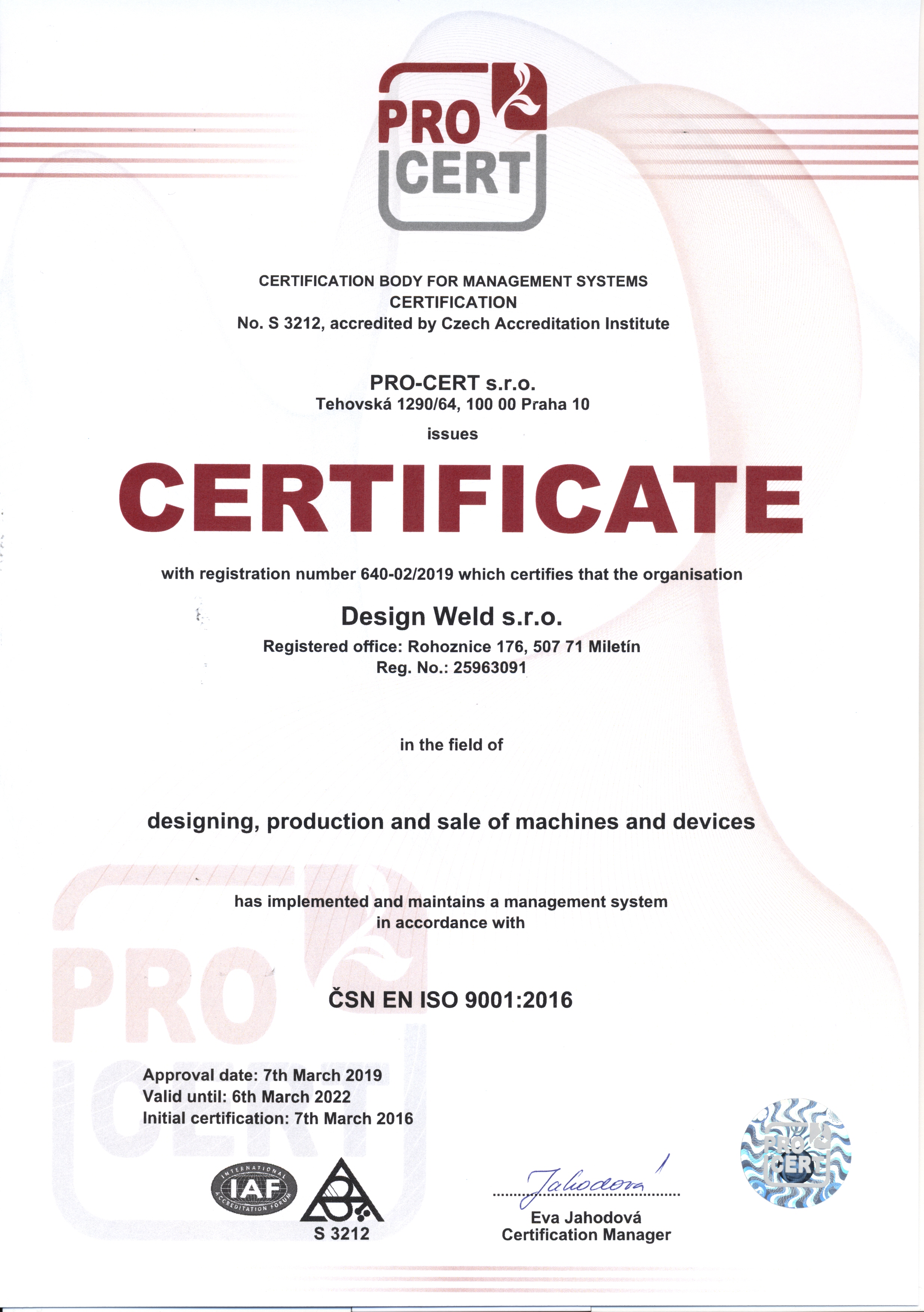

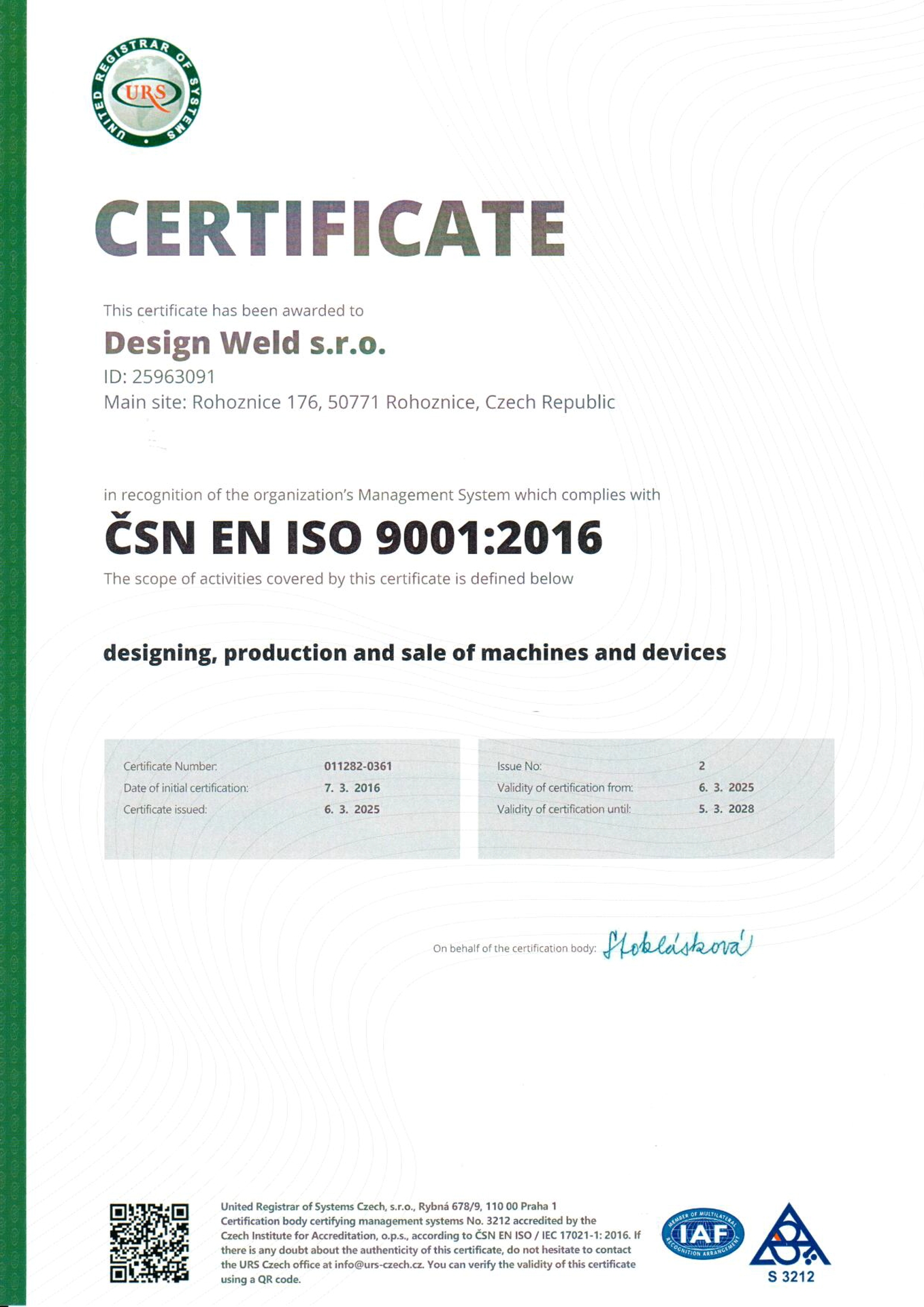

Certificates and attestations for download
![Certificate of trademark registration[pdf]](assets/img1/onas/Osvedceni-o-zapisu-ochranne-znamky_small.jpg)
History of Design Weld Ltd. company
History
-
Establishment of the designing office by Miran Trvalec
2001
-
Change of the legal form to Design Weld Ltd
2002
-
Opening of the production of welding tools
2003
-
Launching nut feeders to the market
2004
-
Enlargement of the designing office by prototype production
2006
-
Certification ISO 9001
Launching welding presses to the market2007
-
First plant building / assembly and testing place (500 m²)
2008
-
Opening of the production of ceramic pins
2009
-
Enlargement of prototype office to adequate machine production
2010
-
Second plant building / machinery production (600 m²)
2013
-
Company trademark registration
Activation of service - production of ceramic pin up to 24 hours2014
-
Purchase of measuring system FARO
Purchase of vertical machining centre
Purchase of Gantry machining centre with 5-side machining of big workpieces (2.940 x 1.600 x 900)
Purchase of CNC lathe machine STYLE 350
Activation of 5 CAD workplaces / purchase of 5 licences SOLID WORKS
Activation of CAM workplace / HSM WORKS + SOLID WORKS
Extension of the administrative part of the company /construction and development office2015
-
Increase of capacity for ceramic pin production to 6000 pcs per year(purchase of CNC grinder BSKU 16)
Increase of production capacities of milling (purchase of CNC milling machine MT 750)2016
-
Third plant building / finalisation and testing place for our products (600 m²)
Activation of milling and lathe workplace for technical practice of students of vocational school with apprenticeship (metalworking branch)
Start of production of riveting workplaces
2018
-
Enlargement of capacity for ceramic pin production to 12.000 pcs per year
2019
